LiftingSafety 700 Bar Foot Pump. Two Stage. Reservoir volume from 350cc to 700cc (3 Options)

Model:

FP-1252


This page has expired. Unfortunately this product is no longer available. Please view our full range of Hydraulic Pumps or Contact us with your requirements for a possible suitable alternative.

  • Max. working pressure: 10000  PSI / 700 BAR
  • Twin speed.

Specifications

Model number Pressure rating (bar) using oil capacity (cc) oil volume per stroke (cc) A B C D E Oil port thread (F) Weight (kg)
1st stage 2nd stage 1st stage 2nd stage (mm)

1252-195806

13.8 700 350 13.0 2.8 474 174 192 17 461 3/8NPT 8.5
1252-195807 13.8 700 700 13.0 2.8 660 174 192 17 647 3/8NPT 10.8
1252-195808 13.8 700 700 13.0 2.8 708 174 192 17 695 3/8NPT 11.1

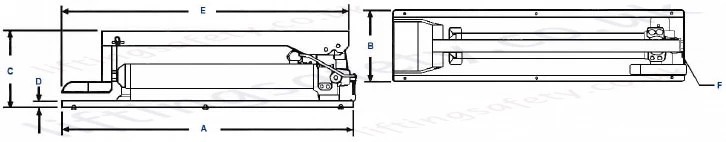

Technical Diagram for Foot pumps

This page has expired. Unfortunately this product is no longer available. Please view our full range of Hydraulic Pumps or Contact us with your requirements for a possible suitable alternative.

  • Max. working pressure: 10000  PSI / 700 BAR
  • Twin speed.

Specifications

Model number Pressure rating (bar) using oil capacity (cc) oil volume per stroke (cc) A B C D E Oil port thread (F) Weight (kg)
1st stage 2nd stage 1st stage 2nd stage (mm)

1252-195806

13.8 700 350 13.0 2.8 474 174 192 17 461 3/8NPT 8.5
1252-195807 13.8 700 700 13.0 2.8 660 174 192 17 647 3/8NPT 10.8
1252-195808 13.8 700 700 13.0 2.8 708 174 192 17 695 3/8NPT 11.1
Technical Diagram for Foot pumps

Pricing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
