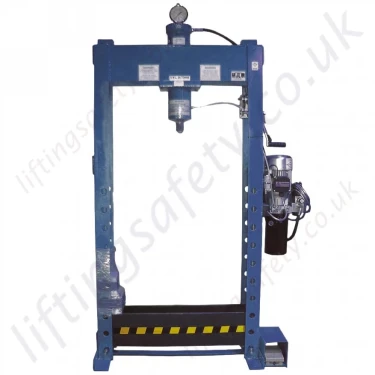

"Standard Height" - Heavy Duty Hydraulic Press, Electric Hydraulic Pump - 20,000kg to 100,000kg

Model:

EHP-1197


This page has expired. Unfortunately this product is no longer available. Contact us with your requirements for a possible suitable alternative.

20 - 100 Tonne SWL

  • 12 Month guarantee period
  • Large 4" diameter pressure guage
  • Precision built hydraulic pump and hydraulic cylinder
  • Long life Hydraulic Seals
  • Hard chromium-plated piston rod in pump
  • Fitted with a stroke restriction valve to prevent hydraulic cylinder damage
  • Hydraulics are powered by a foot switch through an eletric motor
  • Manufactured in England
  • Excellent quality, suitable for industrial use, not to be confused with lesser quality imported presses.

Design features on all press models:

Precise guidance of the piston rod through a high quality self-lube bush gives first class pressing performance. The cylinder is manufactured from top quality hydraulic tube (all welded construction)

The hydraulic pump and cylinder are manufactured from top quality materials, giving good tolerance and long working life.

Part Number O/A frame height (mm) A Frame height (mm) B O/A Frame width (mm) C Frame width (mm) D O/A Frame depth (mm) L Min daylight (mm) E Max Daylight (mm) F Side clearance between posts (mm) J Front clearance between posts (mm)
1197-13387 1900 1630 830 650 520 100 1000 180 500
1197-13388 2020 1760 1190 900 520 110 1020 180 750
1197-13389 2020 1760 1190 900 520 110 1020 180 750
1197-13390 1920 1670 1240 940 800 160 950 260 720
1197-13391 1980 1720 1440 1150 800 1000 900 260 925
1197-13392 1980 1720 1440 1150 800 100 900 260 925
1197-13393 1980 1720 1560 1270 800 100 900 260 1065
1197-13394 1980 1720 1560 1270 800 100 900 260 1065
1197-13395 1980 1720 1560 1270 800 100 900 260 1065
1197-13396 1980 1720 1560 1270 800 100 900 260 1065

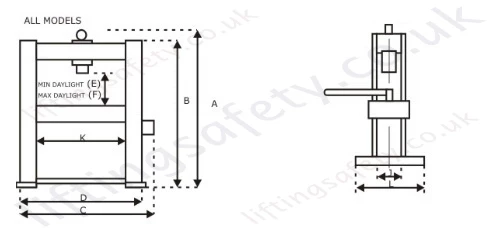

Dimensional Drawing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

This page has expired. Unfortunately this product is no longer available. Contact us with your requirements for a possible suitable alternative.

20 - 100 Tonne SWL

  • 12 Month guarantee period
  • Large 4" diameter pressure guage
  • Precision built hydraulic pump and hydraulic cylinder
  • Long life Hydraulic Seals
  • Hard chromium-plated piston rod in pump
  • Fitted with a stroke restriction valve to prevent hydraulic cylinder damage
  • Hydraulics are powered by a foot switch through an eletric motor
  • Manufactured in England
  • Excellent quality, suitable for industrial use, not to be confused with lesser quality imported presses.

Design features on all press models:

Precise guidance of the piston rod through a high quality self-lube bush gives first class pressing performance. The cylinder is manufactured from top quality hydraulic tube (all welded construction)

The hydraulic pump and cylinder are manufactured from top quality materials, giving good tolerance and long working life.

Part Number O/A frame height (mm) A Frame height (mm) B O/A Frame width (mm) C Frame width (mm) D O/A Frame depth (mm) L Min daylight (mm) E Max Daylight (mm) F Side clearance between posts (mm) J Front clearance between posts (mm)
1197-13387 1900 1630 830 650 520 100 1000 180 500
1197-13388 2020 1760 1190 900 520 110 1020 180 750
1197-13389 2020 1760 1190 900 520 110 1020 180 750
1197-13390 1920 1670 1240 940 800 160 950 260 720
1197-13391 1980 1720 1440 1150 800 1000 900 260 925
1197-13392 1980 1720 1440 1150 800 100 900 260 925
1197-13393 1980 1720 1560 1270 800 100 900 260 1065
1197-13394 1980 1720 1560 1270 800 100 900 260 1065
1197-13395 1980 1720 1560 1270 800 100 900 260 1065
1197-13396 1980 1720 1560 1270 800 100 900 260 1065
Dimensional Drawing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
