Cromox CV Stainless Steel, Grade 6 / 60, Standard Shortener, WLL 0.90 tonne to 5.0 tonne

Model:  CSSS-4586

Part N° Type W.L.L. Tonnes Mass Kg To Suit Chain Size (mm) Unit Price Quantity
4586-T23494 SS-CV-06 0.9 0.18 6 £  103.19
4586-T23495 SS-CV-08 1.55 0.38 8 £  165.73
4586-T23496 SS-CV-10 2.45 0.71 10 £  202.29
4586-T23497 SS-CV-13 3.85 1.18 13 £  241.27
4586-T23498 SS-CV-16 5 2.3 16 £  465.84
Pricing Currency: Add To Quote Request   ?

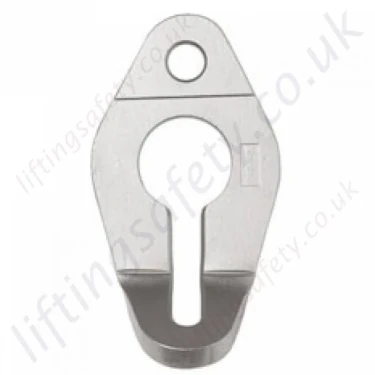

Cromox Stainless Steel Standard Shortener.

  • Grade 6 cromox components are manufactured in Germany using the highest quality of stainless steel to achieve market leader quality products.
  • Rigorously tested in house.
  • All chains are manufactured on state of the art modern chain making machinery.
  • The cromox range of products use the highest levels of design, materials and manufacturing processes to produce the best performing products for use in the harshest environments.
  • Due to the high quality, purity and narrow tolerances of alloying elements in cromox steel, they are able to produce durable, heavy duty stainless steel products with increased corrosion and crack resistance.
  • The high concentrations of chromium ensures a strong and passive layer of chromium oxide for protection.
  • A precise amount of Nickel creates a shiny surface.
  • Other alloys like molybdenum allow for increased Working Load Limit (WLL) and a higher breaking load.

Specifications and Dimensions

Type Chain Size (mm) a (mm) b (mm) t (mm) W.L.L. (tonnes) Mass (kg)
SS-CV-06 6 47 10 81 0.9 0.18
SS-CV-08 8 70 12 94 1.55 0.38
SS-CV-10 10 80 15 120 2.45 0.71
SS-CV-13 13 91 20 150 3.85 1.18
SS-CV-16 16 100 21 175 5 2.3
Dimensions

Contact Us About This Product
